NGK's Measuring Instruments (Gas analyzers)

Former manufacturer till year 2002: NGK INSULATORS, LTD.
Actual manufacturer since then : ENERGY SUPPORT CORPORATION who is one of NGK groups.

NGK developed O2 analyzers using technology based on ZIRCONIA. Most recently, NGK has produced various instruments independently or together with other manufacturers by employing unique technology based on ZIRCONIA and INFRA-RED rays.

More details:
pdf GENERAL CATALOG

The photograph product is Zirconia 2 Cell Type Oxygen Analyzer(TF-SR) for Inert Gas System in marine application with proven record Class NK, KR, ABS, DNV, LR.

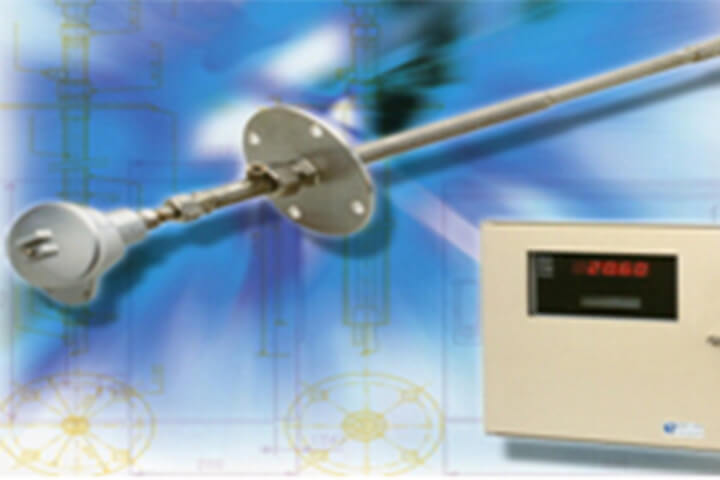

O2 ANALYZER FOR COMBUSTION EXHAUST GAS TYPE TF-10D101
Features:
1. No need for reference gas cylinder
2. No need for standard air
3. No need for routine maintenance with integrated self calibration function
4. Low installation cost
5. Lowe power consumption
6. Small diameter, compact and light weight
Application:

Monitoring and control of boilers and industrial furnaces

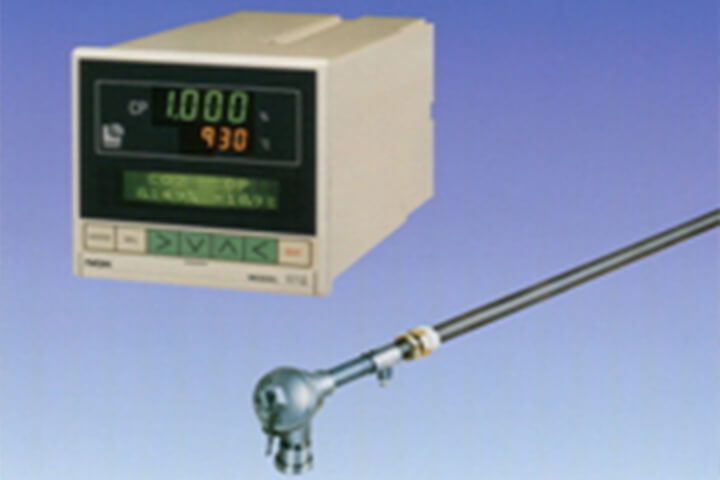

REDUCTION ATOMOSPHERE FURNACE CONTROL SYSTEM TYPE CP-D(R) & CPM

Features:

Conventional measuring of furnaces using a dew point meter, and CO2 meter are not satisfactory in way of maintenance and responses. A new system that enables to automatic control of furnaces by computing and displaying the measured carbon potential value obtained through the Zirconia O2 partial pressure instrument from the furnace has been developed. This new system should be a powerful tool in quality control, reduction in resources and energy saving

Application:

Gas generating furnaces, continuous and batch carbureting, quenching, annealing furnaces

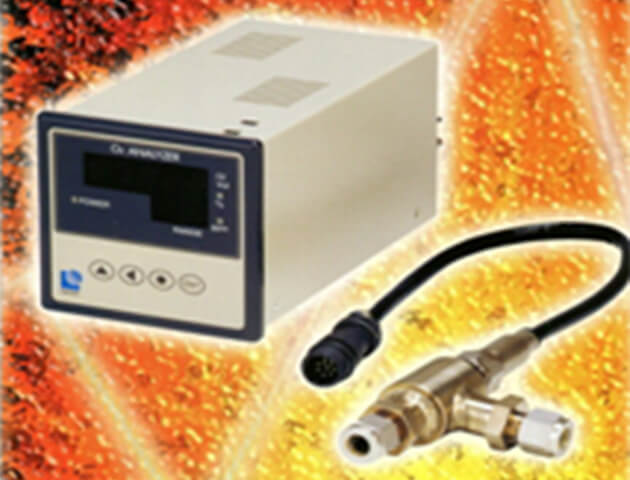

MICRO OXYGEN ANALYZER TYPE TF-21D201, TF-30D201, SH-302/303/304
Features:
1. Extremely small sensor enabling measuring in % and 0-10ppm range.
2. Foot space reduced by separating probe and receiver
3. Swedgelock typed fitting enables easy and positive sensor connection
4. Thick film sensor conforming to the specifications for vacuuming such as load locking
5. Four measuring ranges in % and 0-10ppm selectable
6. Range switching with local/remote/auto range selections
7. Free NC/NO upper and lower alarm setting
8. Extremely resistant to organic silicone with special treatment
Application:

Semiconductor manufacturing facilities, diffusion furnaces, RTP, various N2 furnace environments measuring, air separators. Reflow, ferrite sintering ovens, various environment control, and combustion control
DYC's Oxygen Control System

Manufacturer

DONG YOUNG CERAMIC COMPANY
Features:
- With a point calibration of the air sample, it is possible to measure up to ppm ～ %.
- As the receiver is separate from the sensor, it is possible to place to the sensor closer to a measuring point or directly connect the sensor to be measuring point.
- Compact size (Small installation space)
- Easy maintenance
Application

Semiconductor manufacturing equipments (diffusion furnace, RTP Ambient measurement in all types of N2 furnaces), Reflow furnaces, Ferrite kilns, other ambient control, combustion control applications.

* The left photograph product is Oxygen control system model C-520 that is oxygen analyzer with control system to be operated by computer. Also, this model is adopted by N2 reflow furnaces made in HELLER.

** Please contact us for more detailed information.
SANWA pressure & vacuum switches

Manufacturer

SANWA DENKI CO., LTD.
Features:
- Stainless steel pressure or vacuum sensing element
  (Patented stainless steel coupled bellows as sensing element)
- High cycle life with high efficiency
- Simple mechanism - Trouble free
Application:
- Pressure or vacuum control fluids
- Automatic operations of pumps and compressors
- Sensing set-pressure in Automatic control system
* The left photograph product is vacuum switch SVS series.

** Please contact us for more detailed information.
MITSUMI rotary vane, piston & diaphragm pumps

Manufacturer

MITSUMI MANUFACTURING CO., LTD.
Features:
- The rotary type pump not only employs newly developed abrasion proof carbon blades but also uses the company's unique side carbon to ensure side safety. Through a combination of many year's experience and the latest technology, the company has successfully developed a large-size model which can be safely used by the users.
  Unlike existing pumps, this pump produces only a little amount of frictional black carbon powder, and it is also designed to generate as little noise as possible.
- The diaphragm type, which employs a special diaphragm and special valves, has been introduces into the market as a low-noise, high-durability pump.
- The piston type features compactness, light weight, and low noise. It is an oscillating piston type pump which utilizes the vertical motion of a special resin piston ring for pressurization and exhaust.
  In particular, in an endurance test, this pump has successfully withstood 15,000 hours of continuous running, thereby proving its high reliability and long life.
Application:

ROTARY PUMP: Vacuum packaging, Bill calculators,　Deposit machines, Cash dispensers, etc.
DIAPHRAGM PUMP: Medical equipments, Printing machines, Physical and chemical appliances, etc.
PISTON PUMP: Medical equipments, Oxygen generators, Physical and chemical appliances, etc.

* The left photograph product is the piston pump MP series.

** Please contact us for more detailed information.
TOMONO centrifugal, cascade, gear & magnetic pumps & relief valve

Manufacturer

TOMONO INDUSTRIES CO., LTD.
- CENTRIFUGAL PUMP: It is easy to make the assembly and disassembly because of the simple designed pump. Also, the parts exchange are easy by the compatibility consideration of the parts.
- CASCADE PUMP: This pump was developed specially for the various chemical liquids including solvent, acid, alkali. Also, the inside can be washed easily if the cover and impeller are taken-off.
- GEAR PUMP: This pump is designed to make the assembly and disassembly easily and long-life operation. The standard material is stainless steel, but other materials can be used by customer's request.
- MAGNETIC PUMP: This pump is compact, inexpensive, maintenance- free and long-life operation.
  The explosion-proof typed motor is selectable.
- RELEAF VALVE: This valve is designed for the pressure adjustment and the protection of extreme pressure rise. The materials of wetted parts are comprised of SUS304/SC13 or SUS316/SCS14 & PTFE.
* The left photograph product is the centrifugal pump TF series.

** Please contact us for more detailed information.
OTHER

Special diaphragm pumps to be used for Gas analyzers & other sampling applications
Features:
- Oil-Free permanent-lubrication technology means oil-free emissions, for exceptionally clean operation.
- Simple construction facilitates disassembly and reassembly for easy maintenance

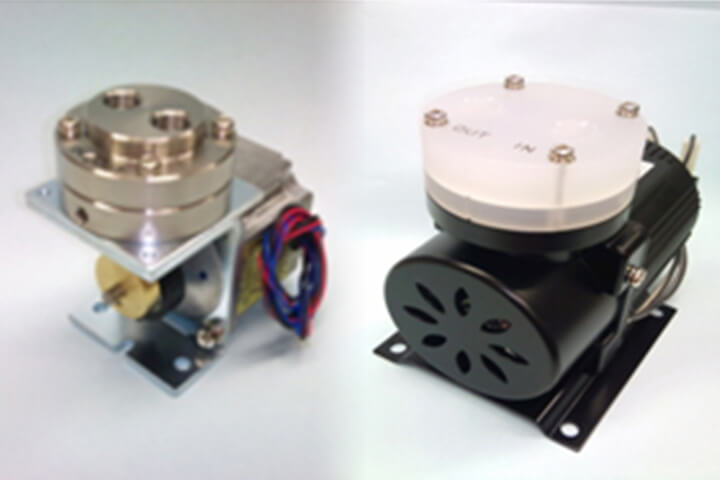

The right photograph product is the diaphragm pump KS-281057-L05 (discharge flow: 5 L/Min.) used for NGK oxygen analyzers type TF-SR & other typed oxygen analyzers. Also the same diaphragm pump KS-281057-L08 (discharge flow: 8 L/Min.) is available.

* The left photograph product is the diaphragm pump BES-1ST-FFS (DC24V) used for NGK oxygen analyzers and DYC oxygen control system.

** Please contact us for more detailed information.
